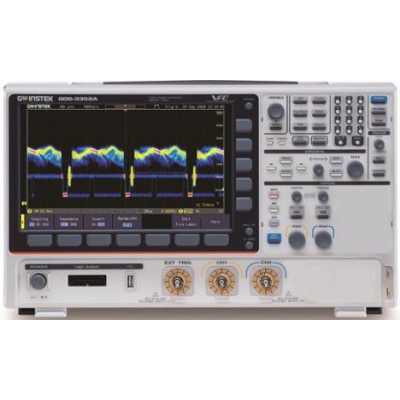

固緯示波器 新品 GDS-3000A數字存儲示波器

GDS-3352A

通道

2 + Ext

帶寬

DC ~ 350MHz (–3dB) @50Ω/1MΩ input impedance

上升時間

1ns (calculated)

帶寬限制

20MHz/100MHz/200MHz*

GDS-3652A

通道

2 + Ext

帶寬

DC ~ 650MHz (–3dB) @ 50Ω input impedance

DC ~ 500MHz (–3dB) @1MΩ input impedance

上升時間

535ps (calculated)

帶寬限制

20MHz/100MHz/200MHz/300MHz*

*帶寬限制公差為±10%。

垂直靈敏度

分辨率

8 bits (Max.12 bits with Hi Res)

For 1MΩ input impedance: 1mV*~10V/div

For 50Ω input impedance: 1mV*~1V/div

輸入耦合

AC, DC, GND

輸入阻抗

1MΩ// 22pF approx.

DC增益精度

1mV: ±5% full scale
≥2mV: ±3% full scale

極性

Normal & Invert

***大輸入電壓

For 1MΩ input impedance: 300Vrms, CAT II

For 50Ω input impedance: 5Vrms max.

偏移位置范圍

For 1MΩ input impedance:

1mV/div ~ 20mV/div :±1V; 50mV/div ~ 500mV/div: ±10V

1V/div ~ 5V/div : ±100V; 10V/div : ±1000V

For 50Ω input impedance:

1mV/div ~ 50mV/div:±1V; 100mV/div ~ 1V/div : ±10V

波形信號處理

+, -, ×, ÷, FFT, User Defined expression

FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning or Blackman.

觸發

Source

CH1, CH2, Line, EXT

觸發模式

Auto (supports Roll Mode for 100ms/div and slower), Normal, Single

觸發類型

Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Timeout, Alternate, Event-Delay(1~65535 events), Time-Delay(Duration, 4ns~10s), Bus (UART, I2C, SPI, CAN, LIN)

Holdoff 范圍

4ns to 10s

耦合

AC, DC, LF rej., HF rej., Noise rej.

靈敏度

1div

外部觸發

Range

±20V

靈敏度

DC ~ 100MHz Approx. 100mV
100MHz ~ 350MHz Approx. 150mV

輸入阻抗

1MΩ±3%~22pF

*:在1mV/div和2mV/div下，帶寬限制為20MHz。

水平

時基范圍

1ns/div ~ 1000s/div (1-2-5 increments)
ROLL: 100ms/div ~ 1000s/div

預觸發

10 div maximum

后觸發

10,000,000 div maximum.

時基精度

±5 ppm, about ±2ppm increase in error per year

信號采集

實時采樣率

5GSa/s one channel;

2.5GSa/s dual channels

記錄長度

Max. 200Mpts /CH

采集模式

Normal, Average, High Resolution, Peak Detect, Single

峰值檢測

400ps (typical)

平均

Selectable from 2 to 256

分段數

1 to 490,000 maximum

X-Y 模式

X-Axis 輸入

Channel 1

Y-Axis 輸入

Channel 2

相位偏移

±3° at 100kHz

光標和測量

光標

Amplitude, Time, Gating available;

Unit: Seconds(s), Hz (1/s), Phase (degree), Ratio (%).

自動測量

38 sets with indicator: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, %Flicker, Flicker Idx ,FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase.

光標測量

Voltage difference between cursors(∆V)

Time difference between cursors(∆T)

自動計數器

6 digits, range from 2Hz minimum to the rated bandwidth

控制面板功能

Autoset

Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with “Undo Autoset”, “Fit Screen”/ “AC Priority” mode, and “Fine Scale” functions.

保存設置

20 sets

保存波形

20 sets

保存參考波形

4 sets

電源測量

(選配)

Power Quality, Harmonics, Ripple, In-rush current, Switching Loss, Modulation, SOA, Transient, Efficiency, B-H curve, Control Loop Response, PSRR, Turn On/Off

AWG

一般

通道

2

采樣率

200MSa/s

垂直分辨率

14 bits

***大頻率

25 MHz

波形

Sine, Square, Pulse, Ramp, DC, Noise

Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac

輸出范圍

20 mVpp to 5 Vpp, HighZ;

10 mVpp to 2.5 Vpp, 50Ω

輸出分辨率

1mV

輸出精度

2% (1 kHz)

偏移范圍

±2.5 V, HighZ; ±1.25 V, 50 Ω

偏移分辨率

1mV

Sine

頻率范圍

100 mHz to 25 MHz

平坦度
(relative to 1 kHz)

±0.5 dB < 15MHz;

±1dB 15MHz~25MHz

諧波失真

-40 dBc

雜散（非諧波）

-40 dBc

總諧波失真

1%

S/N Ratio

40 dB

方波/脈沖波

頻率范圍

Square: 100 mHz to 15 MHz

上升/下降時間

< 15ns

過沖

< 3 %

占空比

Square: 50%

Pulse: 0.4% to 99.6%

***小脈沖寬度

30ns

抖動

500 ps

斜坡

頻率范圍

100 mHz to 1MHz

線性度

1%

對稱性

0 to 100%

頻譜分析儀

頻率范圍

DC~2.5GHz Max, dual channel with spectrogram (based on Advanced FFT).

Notice: Frequency which exceeds analog front end bandwidth is uncalibrated

Span

1kHz~2.5GHz (Max.)

分辨率帶寬

1Hz~2.5MHz (Max.)

參考電平

-80dBm to +40dBm in steps of 5dBm

垂直單位

dBV RMS; Linear RMS; dBm

垂直位置

-12divs to +12divs

垂直比例

1dB/div to 20dB/div in a 1-2-5 Sequence

顯示的平均噪聲級

1V/div ß -40dBm, Avg :16

100mV/div ß -60dBm, Avg :16

10mV/div ß -80dBm, Avg :16

雜散響應

2nd harmonic distortion < 35dBc

3rd harmonic distortion < 40dBc

頻域跟蹤類型

Normal; Max Hold; Min Hold; Average (2 ~ 256)

檢測方法

Sample; +Peak; -Peak; Average

FFT 窗

FFT Factor:
Hanning 1.44
Rectangular 0.89
Hamming 1.30
Blackman 1.68

邏輯分析儀(選配)

采樣率

1GSa/s

帶寬

200MHz

記錄長度

Per Channel 10M points (max)

輸入通道

16 Digital (D15 - D0)

觸發類型

Edge, Pattern, Pulse Width, Serial bus (I2C, SPI, UART, CAN, LIN), Parallel Bus

臨界值分組

Settable thresholds for:

D0-D3, D4-D7, D8-11, D12-15

臨界值選擇

TTL, CMOS(5V,3.3V,2.5V), ECL, PECL,0V ,User Defined

用戶定義的臨界值范圍

±5V

***大輸入電壓

±40 V

***小驅動電壓

±250 mV

垂直分辨率

1 bit

Frequency Response Analyzer

頻率范圍

20Hz to 25MHz

輸入與輸出源

Channel 1 ~ 2

測試點數量

10, 15, 30, 45, 90 points per decade selectable for logarithm scale;

2 ~ 1000 points selectable for linear scale

動態范圍

> 80dB (typical)

測試振幅

10mVpp to 2.5Vpp into 50Ω, 20mVpp to 5Vpp into High-Z, Fixed test amplitude or custom amplitude for each decade.

測試結果

Logarithmic or linear overlaid gain and phase plot, may also overlay with reference plots for cross comparison. Test results saved in csv format for offline analysis.

手動測量

Tracking gain and phase markers

繪圖尺度

Auto-scaled during test

顯示

TFT LCD 類型

10.2" TFT LCD WVGA color display

顯示分辨率

800 horizontal × 480 vertical pixels (WVGA)

內插方式

Sin(x)/x

波形顯示

Dots, vectors, variable persistence (16ms~4s), infinite persistence, gray or color waveforms.

波形更新率

200,000 waveforms per second, maximum

顯示格線

8 x 10 divisions

顯示模式

YT, XY

接口

USB Port

USB 2.0 High-speed host port X1, USB High-speed 2.0 device port X1

以太網 (LAN)

RJ-45 connector X1, 10/100Mbps with HP Auto-MDIX

Go-NoGo BNC

5V Max/10mA open collector output X1

Power Supply Receptacles

±12V / 600mA for current probe use.

Two sets of power supply receptacles for 2CH models;

RS232C

DB-9 male connector X1

VGA 影像輸出

DB-15 female connector X1, monitor output for display on VGA monitor

選配的 GPIB 模組

Fully programmable with IEEE488-2 compliance

Kensington 安全鎖插槽

Rear-panel security slot connects to standard Kensington-style lock.

其他

多國語言菜單

Available

操作環境

Temperature: 0°C to 50°C. Relative Humidity ≤ 80% at 40°C or below;
≤ 45% at 41°C ~ 50°C.

屏幕幫助

Available

時間功能

Time and Date, Provide the Date/Time for saved data

內建Flash 存儲空間

800M bytes Single-Level Cell flash memory

內建APP

Go/NoGo, DVM, DataLog, Digital Filter, Frequency Response Analyzer, Mask, Mount Remote Disk, Demo

用戶自定義按鍵

User can select one of the several different preset functions as shortcut key.

額定電壓范圍與功耗

AC 100V ~ 240V, 50Hz ~ 60Hz, auto selection. power consumption:100W

重量

Approx. 4.6kg

尺寸

420mm(W)X 253mm(H)X 113.8mm(D)
